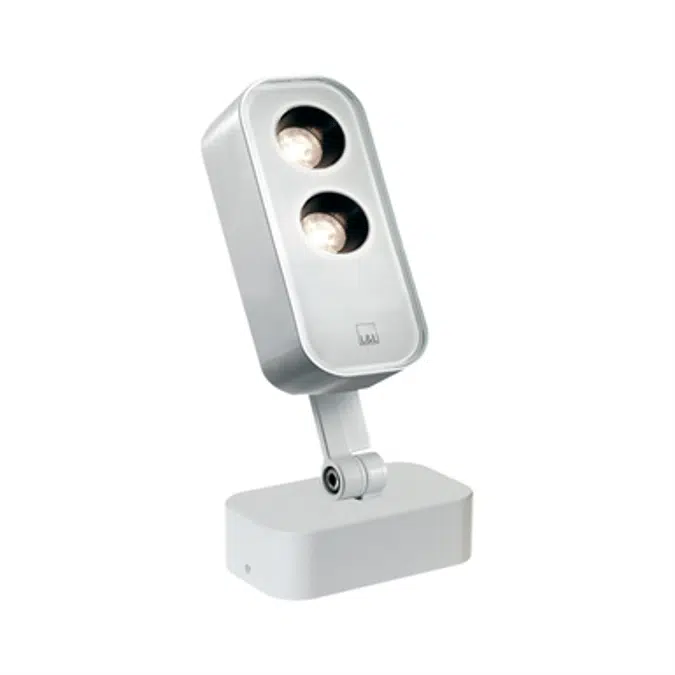

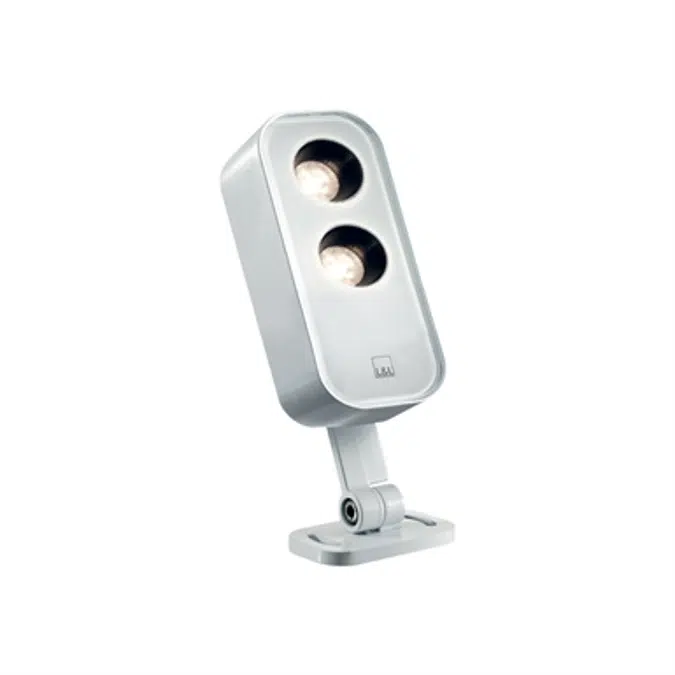

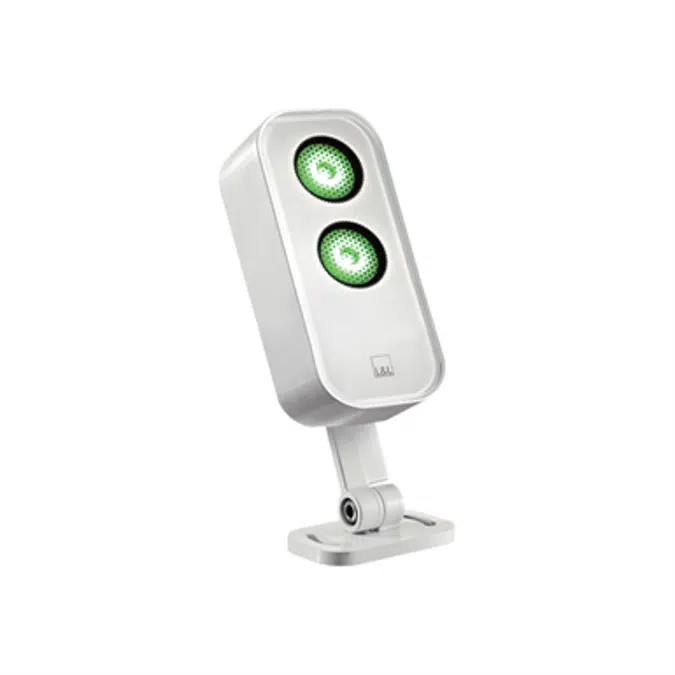

Siri 1 - Outside Lighting

Projector for outdoor applications

surface mounted (ceiling, wall, ground, spike)
Power: 9W
Power supply: 230Vac
Lumen output at source: 603 lm (3000K)
Delivered lumen output: 422 lm (3000K, 30°)
2 power LEDs, 1/4 ANSI BIN, 50 000h L95 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K
Optics: 6°: optical system consisting of a high-efficiency TIR lens, 12°, 30°, 40°, 10°x45°: optical system composed of a series of light sources. The deep-set TIR lens guarantees high-quality light emission and visual comfort
Body material: body made of low-copper-content die-cast aluminium alloy EN AB 47100 for excellent resistance to corrosion
Finishes: white finish obtained through an initial treatment of the material with ALODINE NT-E®, followed by a coat of epoxy paint and one of POLYESTER paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, grey finish obtained through an initial treatment of the material with ALODINE NT-E®, followed by a coat of epoxy paint and one of POLYESTER paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, anthracite finish obtained through an initial treatment of the material with ALODINE NT-E®, followed by a coat of epoxy paint and one of POLYESTER paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector, cor-ten finish obtained through an initial treatment of the material with ALODINE NT-E®, followed by a coat of epoxy paint and one of POLYESTER paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector
RAL finish on request
Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches
built-in power supply unit
includes 1,5 m neoprene cable, H05RN-F 3x1,0 Ø7 mm
Ingress protection: IP66
Impact resistance: IK07
Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content
Operating temperature: -20°C — +45°C
Maximum device temperature: 50°C (Ta 25°C)
Glow wire test: 960°
Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006
Appliance class: I
Weight: 800 g
Dimensions: 240x90x58 mm
Energy efficiency class: A / A+ / A++
Accessories: WB5010H Anti-glare hood - anthracite, WF9005 Neoprene cable - 5 m  H05RN-F 3x1,0 Ø7 mm, WF9010 Neoprene cable - 10 m  H05RN-F 3x1,0 Ø7 mm, WF9015 Neoprene cable - 15 m  H05RN-F 3x1,0 Ø7 mm, WF9020 Neoprene cable - 20 m  H05RN-F 3x1,0 Ø7 mm, WH5010 Honeycomb louvre , WP0300 Spike for in-ground installation
tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption
