Combination Fire/Smoke Damper - 1-1/2 Hour - Vertical Airfoil Blade - Class 1 - FSD-151V

1-1/2 - Combination Fire Smoke Damper
Vertical Airfoil Blade

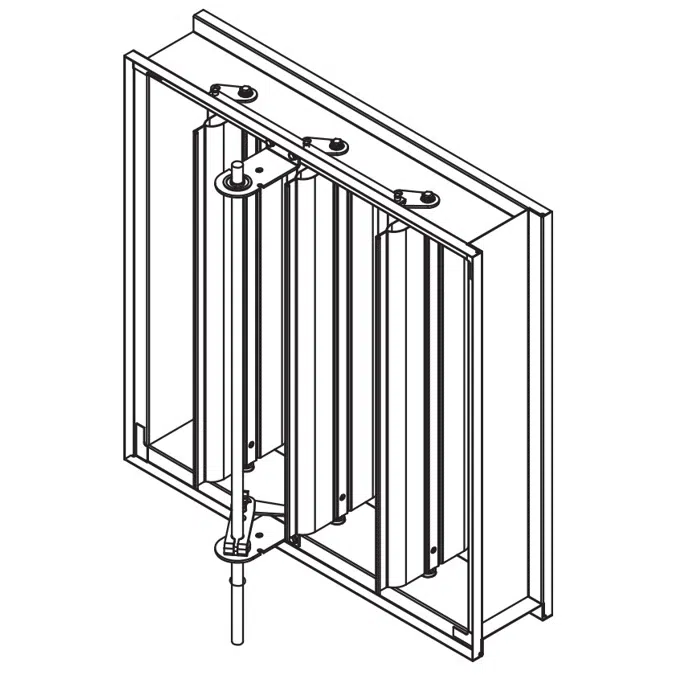

The FSD-151V combination fire smoke damper employs vertical airfoil blades for point-of-origin control of fire and smoke in static and dynamic smoke management systems. The FSD-151V is qualified to 2,000 ft/min (10.2 m/s) and 4 in.wg. (1.0 kPa) and may be installed in vertical walls or partitions with fire resistance ratings up to 2 hours.

Specifikace

Standard Construction
Frame: 5" x 1" (127 x 25) galvanized steel hat channel with inerlocking corner gusset. Equivalent to 13 ga. (2.4) channel frame. Low profile head and sill are used on sizes less than 13" (330) high.
Blades: 6" x 14 ga. (152 x 2.0) galvanized steel - steel airfoil.
Sleeve: 16" x 20 ga. (406 x 1.0) galvanized steel.
Axles: 1/2" (13) diameter plated steel hex.
Linkage: Concealed in frame.
Bearings: Stainless steel oilite, sleeve-type.
Seals: Silicone blade edge seals inegrally rolled and mechanically fastened to blades. Flexible metal jamb seals.
Actuator: 120 VAC, power-open, spring-close, external mount. View Actuators.
Fire Closure Device: HS-10 (electric actuators)
Fire Closure Temperature: 165^oF (75^oC)
Minimum Size: 8" x 8" (203 x 203)
Maximum Size:
Single Section: 48" x 32" (1219 x 813)
Multiple Section: 96" x 32" (2438 x 813)

Ratings
UL 555 Fire Resistance Rating: 1-1/2 hour (vertical)
UL 555S Leakage Class: 1
UL HNLJ.V-5: Ventilation Duct Assemblies
Maximum Temperature: 250^oF (121^oC)

Technická specifikace

Jedinečná ref. hodnotaCombination-Fire-Smoke-Damper-1-1-2-Hour-Vertical-Airfoil-Blade-Class-1-FSD-151V
Skupina výrobkůHVAC
Skupina produktůFire-Smoke Dampers
TypObjekt
Datum zveřejnění2024-07-16
Číslo vydání1

Odkazy

URL produktuhttps://www.pottorff.com/product/details/110

Klasifikace

Kategorie objektu BIMHVAC - Potrubní systémy
Kód Uniclass 2015Pr_65_65_24_29
Popis Uniclass 2015Fire and smoke dampers
Kód CSI MasterFormat 201423 33 13.16
Název CSI MasterFormat 2014Fire Dampers
Číslo OmniClass23-33 29 23
Název OmniClassFire Dampers
