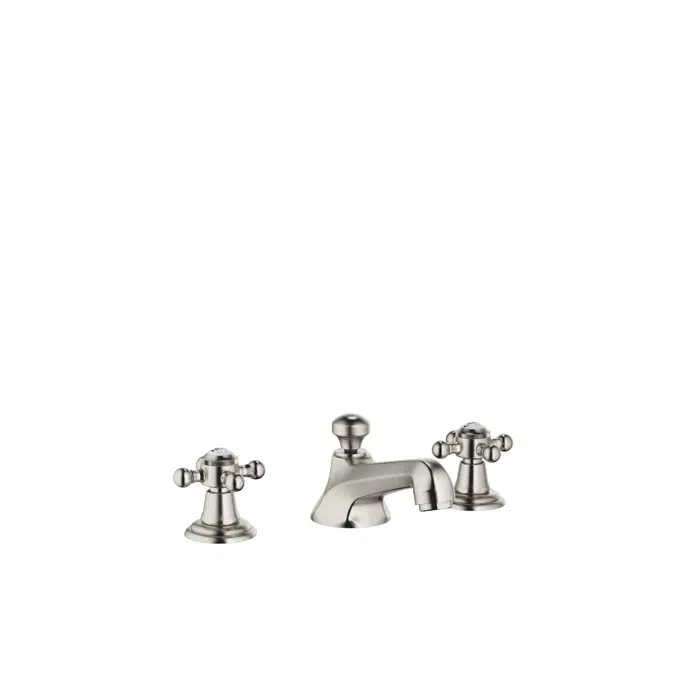

Madison Three-hole basin mixer with pop-up waste 5-3/8"

Specification

Madison Three-hole basin mixer with pop-up waste 5-3/8"
- 5-3/8" Projection
- US drain with overflow
- Rigid spout
- Round aerated stream
- Total height 2-7/8"
- Height to aerator/spout outlet 1-5/8"
- Valve hole diameter 1-1/4"
- Spout hole diameter 1-3/8"
- Without flange
- Water flow rate limited to max. 1.2 gpm
- lead-free
Codes & Standards
- NSF/ANSI 372
- California Energy Commission (CEC)
- ASME A112.18.1/CSA B125.1
- NSF/ANSI/CAN 61
- ADA
Suitable only for basins with overflow.
Available in chrome, platinum matte, platinum, Durabrass, brushed Durabrass, Dark Platinum matte

Technical specification

Unique ref.20700360FF0010
Product familyMadison
Product groupMADISON
TypeObject (single object)
Date of publishing2021-10-11
Edition number1

Links

Product urlhttps://www.dornbracht.com/searchpage?q=20700360
Installation instructionshttps://www.dornbracht.com/searchpage?q=20700360
Product certificationhttps://www.dornbracht.com/searchpage?q=20700360
Technical descriptionhttps://www.dornbracht.com/searchpage?q=20700360

Related

Material mainBrass
Designed inGermany
Manufactured inGermany
Weight Net (Kg)2.99

Classification

BIMobject CategorySanitary - Taps & Mixers
IFC classificationSanitary Terminal
ETIM CodeEC011328
ETIM NameWashbasin mixing tap
UNSPSC namePlumbing fixtures
UNSPSC code3018
Uniclass 2015 CodePr_40_20_87_84
Uniclass 2015 DescriptionSink taps
CSI MasterFormat 2014 Code22 40 00
CSI MasterFormat 2014 TitlePlumbing Fixtures
OmniClass Number23-31 11 00
OmniClass TitleFaucets
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures
