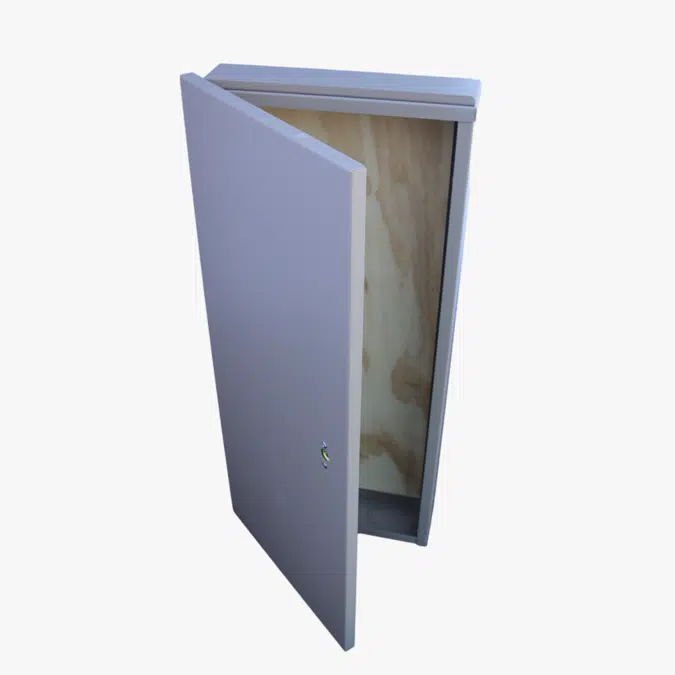

14324W-SM Surface Mount-Enclosure

14324W-SM Surface Mount-Enclosure

14324W-SM Surface Mount-Enclosure

14324W-SM Surface Mount-Enclosure

Features

Fully enclosed exterior service box
Constructed of 16 gauge zinc-coated steel with powder-coat tan finish
16 gauge reinforced hinged door with 7/16" recessed hex latch
Box weight is 34 lbs.
UL listed (UL 1863); designed to NEMA 3R

14324W-SM Service Box Includes:

Enclosure w/ hinged door
4-position #4-14 wire ground bar
1/2" plywood back board for mounting utility equipment

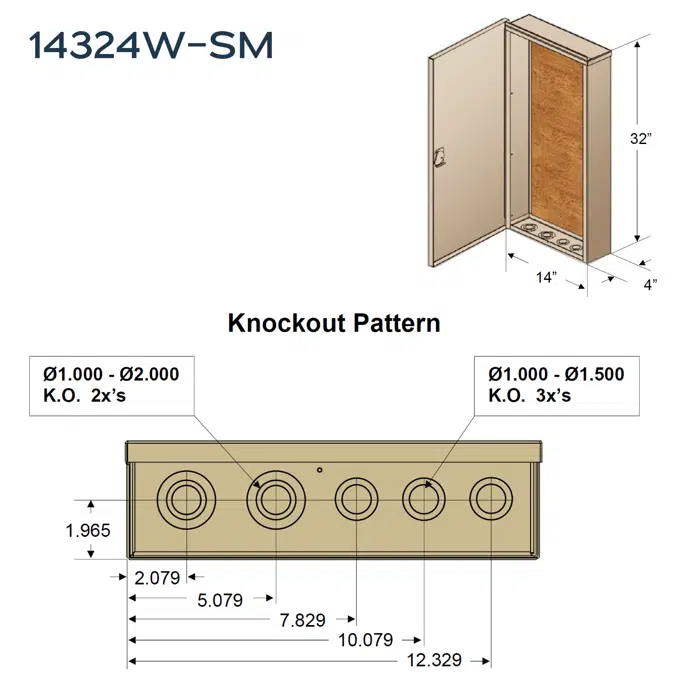

2 knockouts for 3/4" - 1-3/4" conduit; 3 knockouts for 3/4" - 1-1/4" conduit

Specification

Enclosure Type Exterior, Surface-Mount
Model # 14324W-SM
Dimensions 14" (W) x 32" (H) x 4" (D)
Weight 34 lbs.
Certifications UL listed (UL1863); NEMA 3R
Total Knockouts 5

Technical specification

Unique ref.14324w-sm-surface-mount-enclosure
Product familyEnclosures
Product groupExterior Surface-Mount
TypeObject (single object)
Date of publishing2025-05-01
Edition number1

Links

Product urlhttps://benner-nawman.com/tools/14324w-sm-surface-mount-enclosure/
Product certificationhttps://benner-nawman.com/tools/14324w-sm-surface-mount-enclosure/

Related

Material mainPowder coated steel
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryElectrical - Distribution
IFC classificationElectric Distribution
ETIM CodeEC000261
ETIM NameEnclosure/switchgear cabinet (empty)
Uniclass 2015 CodePr_80_77_28
Uniclass 2015 DescriptionEquipment enclosures, cabinets, boxes and housings
CSI MasterFormat 2014 Code26 27 16
CSI MasterFormat 2014 TitleElectrical Cabinets and Enclosures
OmniClass Number23-35 31 00
OmniClass TitleElectrical Power Distribution Devices
