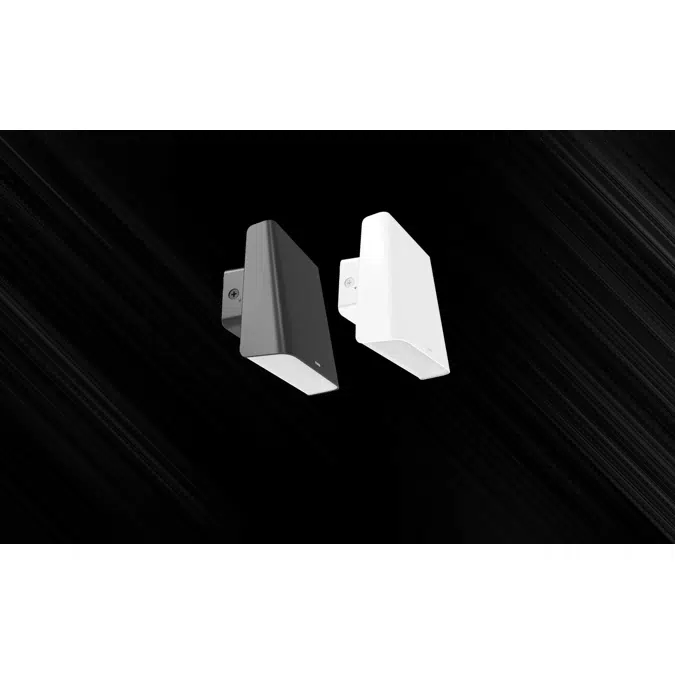

BIM object - ดาวน์โหลดฟรี! LPACK Field-Adjustable Wall Pack

CONSTRUCTION
- Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
- Maximum Ambient Temperature: Suitable for use in up to 40°C (104°F)
- Mounting: Integrated junction box for wall mounting.
- Housing Material: Die-cast aluminum
- Lens: Acrylic
- Reflector: Specular aluminum
- Green Technology: Mercury and UV free. RoHs-compliant components.
- Finish: Formulated for high durability and long lasting color
COMPLIANCE
- UL Listed: Suitable for wet locations. Suitable for mounting within 4 feet of the ground.
- DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
- DLC Product ID: S-7SSG86
KEY FEATURES
- The field-adjustable wall pack with on/off photocell
LED CHARACTERISTICS
- LEDs: Long-life, high-efficacy, surface-mount LEDs
- Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standards for Specifications for the Chromaticity of Solid State Lighting (SLL) Products, ANSI C78.377-2017.
- Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
- IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
FIELD ADJUSTABLE
- Color temperature: Selectable 3000/4000/5000K (4000K default)
- Wattage: Selectable113/85/58W (85W default)
- Photocell setting: on/off (off default)
OTHER
- Warranty: The RAB 5-year, no-compromise warranty covers light output, color stability, driver performance, paint finish and labor. RAB’s warranty is subject to all terms and conditions found at rablighting.com/warranty.
- BUY American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the BUY American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
PERFORMANCE
- Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
- MODEL# THD PF 120V 277V
  - WPLEDL 113W 8.5% 99.4% 10.6% 92.7%
  - WPLEDL 85W 8.2% 99.2% 10.3% 88.6%
  - WPLEDL 58W 7.8% 98.8% 11.7% 81.0%
LIGHTCLOUD BLUE
- Lightcloud Blue enabled:
  - Lightcloud Blue (LCB) is a Bluetooth Mesh wireless lighting control system that allows you to control RAB’s various compatible devices.
  - With RAB’s patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app.
  - Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system’s reach.
- DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
OCCUPANCY SENSORS (OPTIONAL)
- Sensor Type: Microwave (MVS)
- Sensor Mounting: Externally mounted to fixture using bracket A-100479
- Integrated Sensor Model Number(s): /LCBS/MVS option uses MVS50/LCB + Bracket A-100479
- Input Voltage: 12VDC
- Operating Frequency: 50/60Hz
- Input Current: 30mA
- Operating Temperature: -40°F to 140°F (-20°C to 60°C)
- Max Mounting Height: 50 ft (MVS)
- Detection Range: MVS: 50 ft diameter mounted at 50
- Daylight Sensing: The sensor will determine to trigger the light(s) on or not based on the daylight threshold level set.
- Default Settings:
  - Motion Sensitivity: High
  - Brightness when triggered : 100%
  - Hold time: 20 minutes
  - Standby to dim: 20%
  - Standby time: 1 minute
  - When vacant: Off
  - Daylight: Disabled
- Adjustable Settings: Settings for Lightcloud Blue-enabled sensors can be adjusted using the mobile app.
ELECTRICAL
- Drivers: Constant Current, Class 2, 120-277V, 50/60 Hz
- WPLEDL:
  - 113W: 120V: 0.96A, 208V: 0.55A,240V: 0.47A, 277V: 0.44A
  - 85W: 120V: 0.70A, 208V: 0.41A,240V: 0.36A, 277V: 0.34A
  - 58W: 120V: 0.48A, 208V: 0287A,240V: 0.26A, 277V: 0.25A
- Dimming Driver: Dims down to 10% and then off
- Surge Protection: Line-Line: 6kV; Line - GND:10kV
- Note: All values are typical (tolerance +/- 10%)
- THD/Power Factor: Selectable Photocell
- All models come standard with an integrated, selectable, on/off photocell that can automatically control when the wall packs turn on for even greater energy savings.

LPACK Field-Adjustable Wall Pack
