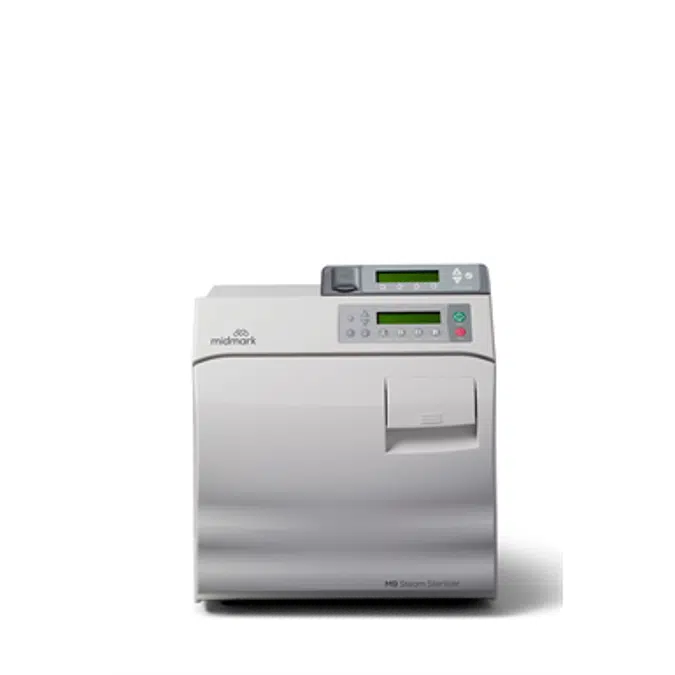

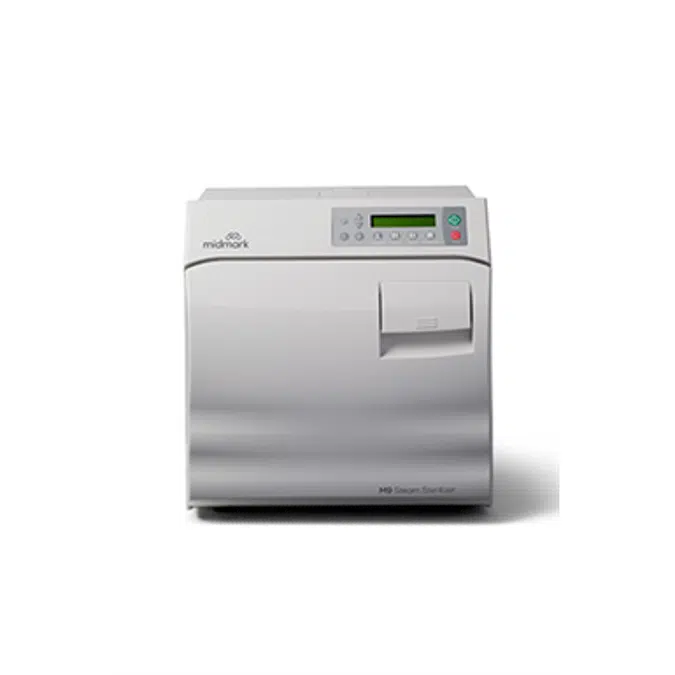

M9™ Steam Sterilizer

Name: M9™ Steam Sterilizer
Rating: 5 (12 reviews)

5.0(12 reviews)

The Midmark M9 Steam Sterilizer uses a small footprint to drive big productivity. If space is limited in your steri-center, the M9 makes a good fit. This sterilizer is designed to help optimize your instrument processing workflow while maintaining safe and reliable sterilization.

Reliable

Steam-flush pressure pulse air removal system ensures proper steam sterilization.

Easy to Use

Pre-programmed sterilization cycles and intuitive LCD display with prompts ensure quick, confident operation.

Safe

Real-time alerts notify users promptly of any critical system errors.

规格

Sterilizer Unit
Overall length with plug 20.38” (51.8 cm)
Overall width 15.3” (38.9 cm)
Overall height with printer/data logger 16.1” (40.9 cm)
Minimum countertop area
17.88” (45.4 cm) D x 15.3” (38.9 cm) W
Unit weight 73 lb (33.1 kg)
Shipping weight 81 lb (36.7 kg)
Water reservoir capacity 1.1 gal (4.1 liters)
Electrical requirements See midmark.com/IP for details

Chamber
9” diameter (22.9 cm),
15” depth (38.1 cm)
3.5 gal usable volume (13.4 liters)

Trays

Two large – 7.3” W x 12” L x 0.8” D
(18.6 cm x 30.5 cm x 2.2 cm)
Two small – 5.6” W x 12” L x 0.8” D
(14.3 cm x 30.5 cm x 2.2 cm)
