Industry Standard Back-To-Back Horizontal 750 Lb. Closet Carrier - ISCA-103-D
Watts

Industry Standard Back-To-Back Horizontal 750 Lb. Closet Carrier - ISCA-103-D

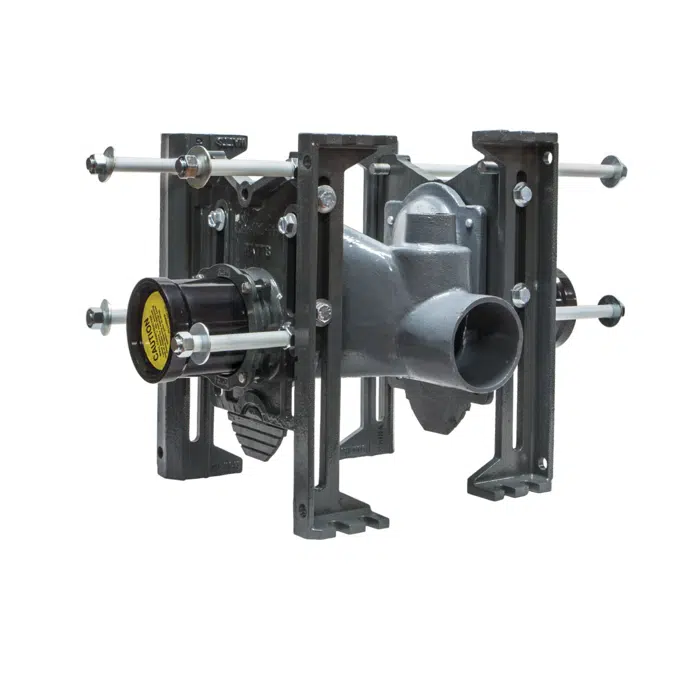

Watts ISCA-103-D Industry Standard back-to-back horizontal adjustable water closet carrier with epoxy coated cast iron fitting, 4"(102) no hub waste and 2"(51) no hub vent connections, epoxy coated cast iron patented compression seal faceplate assembly, and epoxy coated cast iron foot supports with incremental height markings. Adjustable for standard and wheelchair height, adjustable ABS nipple with integral test cap and neoprene bowl gasket. Stainless steel rods and hardware, and chrome plated cap nuts. Carrier complies with requirements of ASME A112.6.1M up to a 750 lb. (340 kg.) static load.

规格
  • Keywords: tankless, water, heater, valve, set, lead, free, cotter, pin, float, valve, toilet, drainage products, watts, watts regulator, plumbing, drains

    Features

    • For wall hung bowls back-to-back in horizontal batteries
    • Compression seal nipple does not require sealants, positively holds test
    • Reversible uprights embossed with incremental height markings
    • ASME A112.6.1M 750 lb. load rating

技术规格
  • 唯一参考ISCA-103-D-Industry-Standard-Back-To-Back-Horizontal-750-Lb-Closet-Carrier
  • 产品系列Drainage Solutions
  • 产品组Fixture Carriers
  • 类型对象(单个对象)
  • 发布日期2022-03-17
  • 版本号1
相关
  • 设计国家/地区United States
  • 制造国家/地区United States
分类
  • BIMobject 类别卫生 - 浴室配件
  • UNSPSC 名称Plumbing fixtures
  • UNSPSC 代码3018
  • Uniclass 2015 代码Pr_20_85_09_96
  • Uniclass 2015 说明Wall-hung WC support brackets
  • CSI MasterFormat 2014 代码22 30 00
  • CSI MasterFormat 2014 标题Plumbing Equipment
  • OmniClass 编号23-31 00 00
  • OmniClass 标题Plumbing Specific Products and Equipment
  • CSI UniFormat II 代码D20
  • CSI UniFormat II 标题PLUMBING

发售地区

North America
Canada
United States
